Description

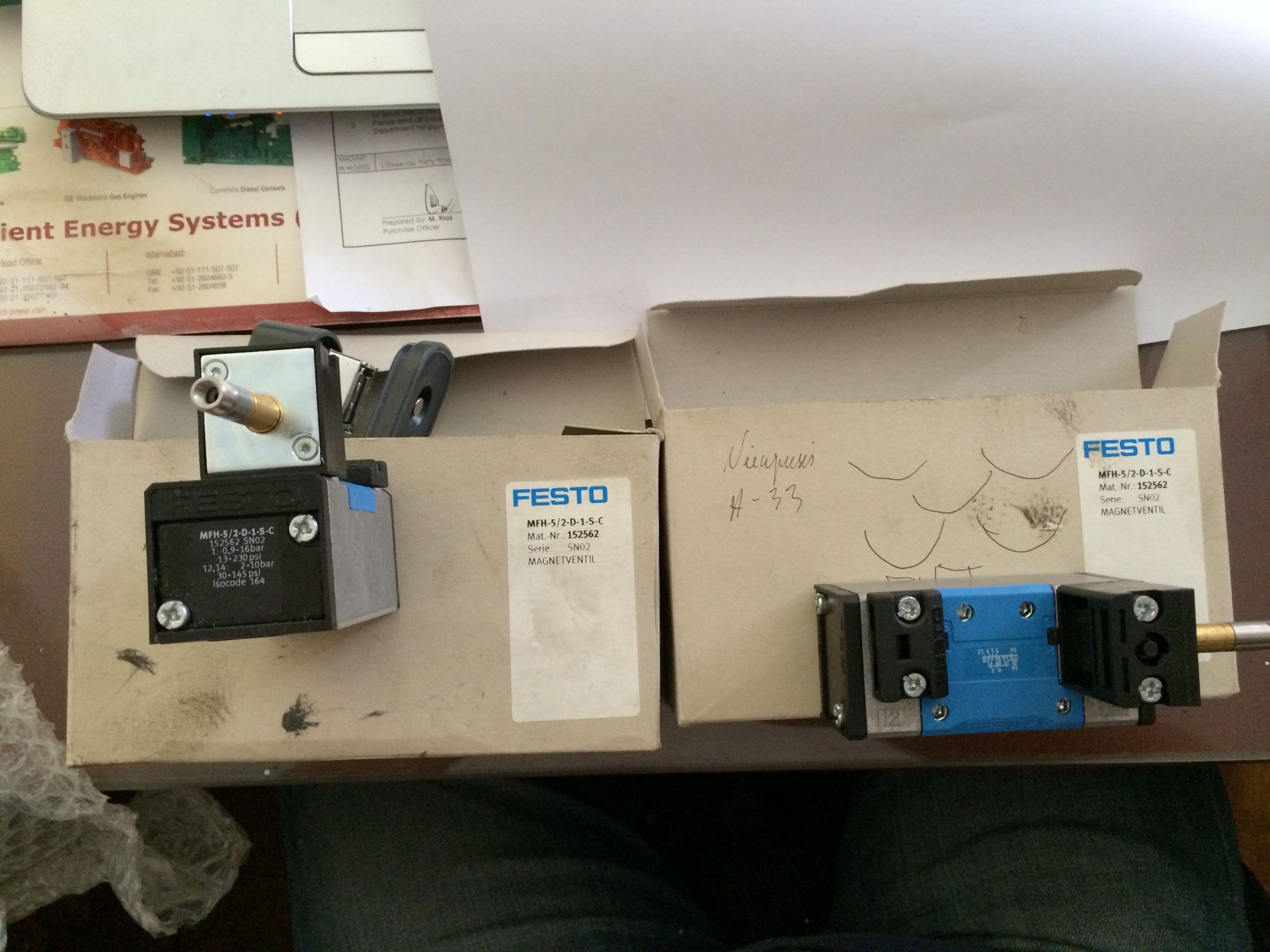

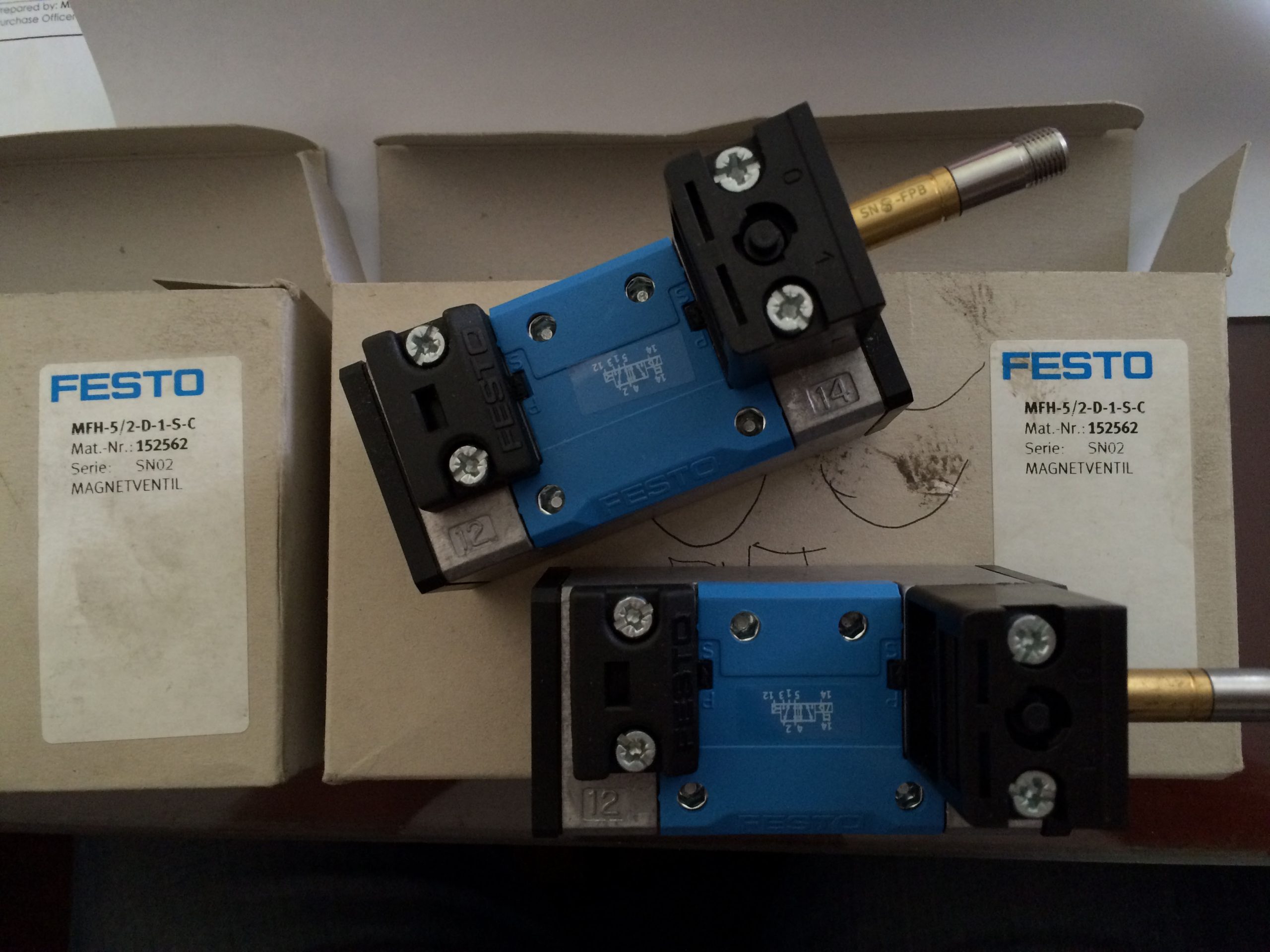

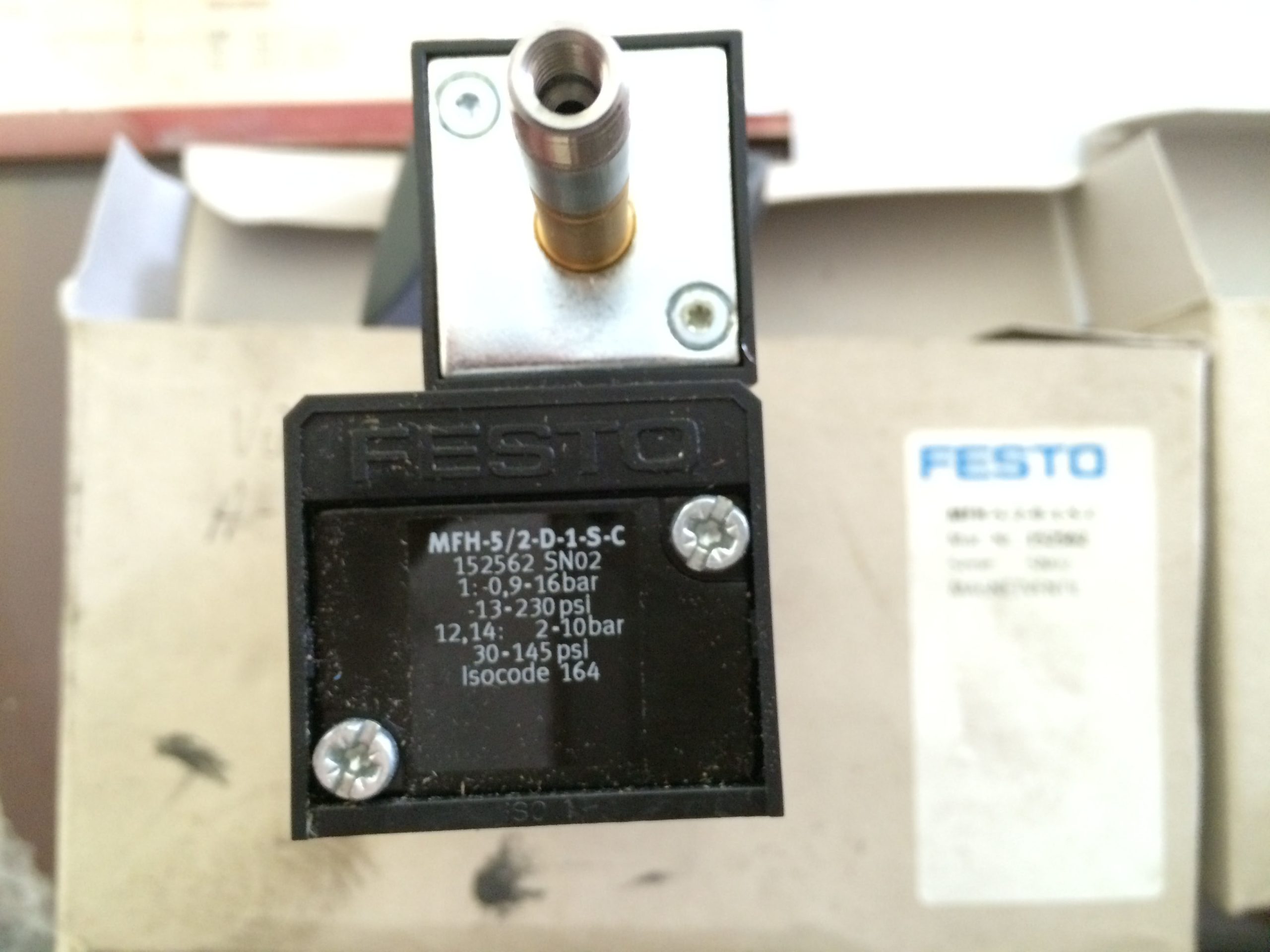

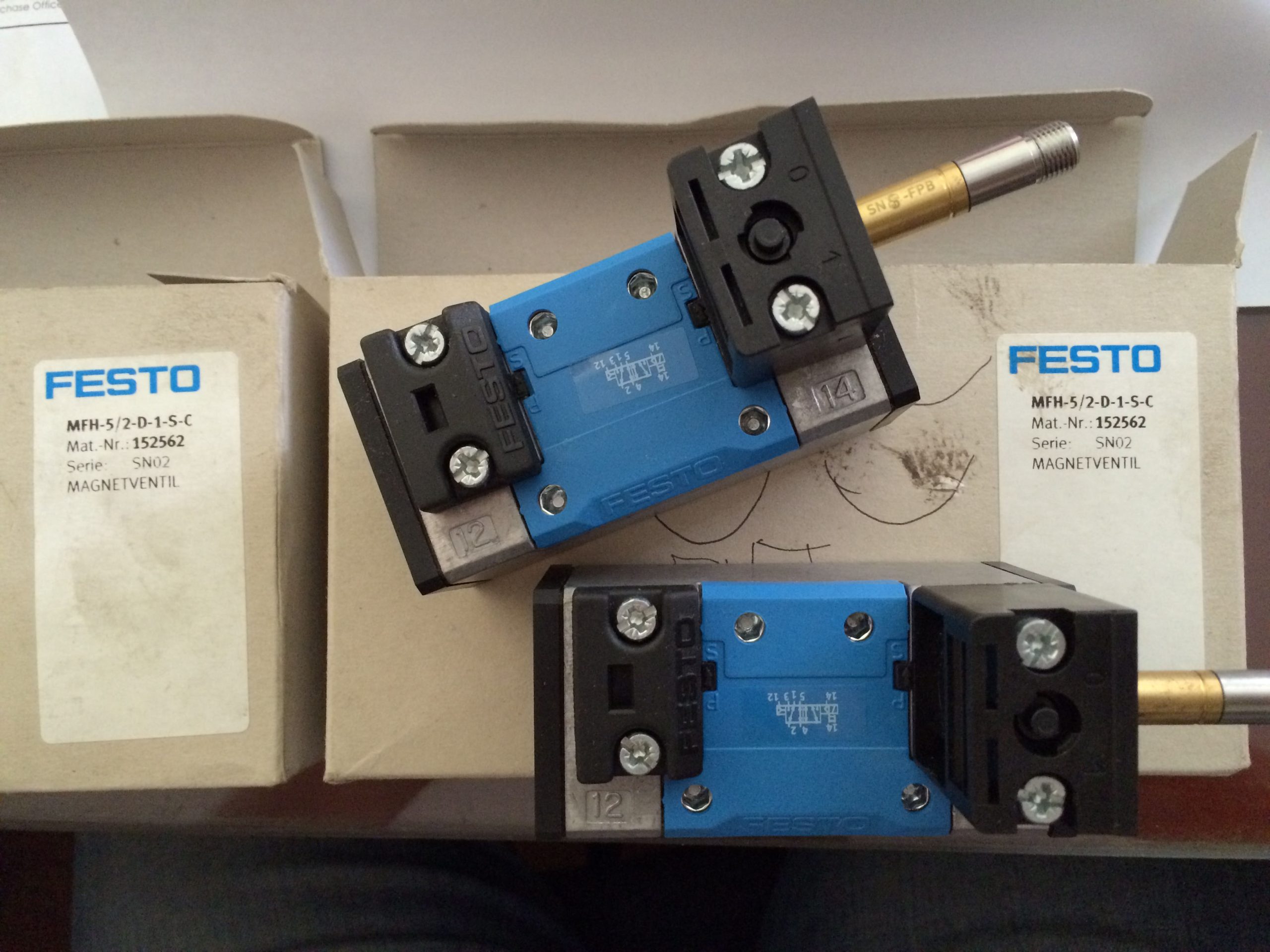

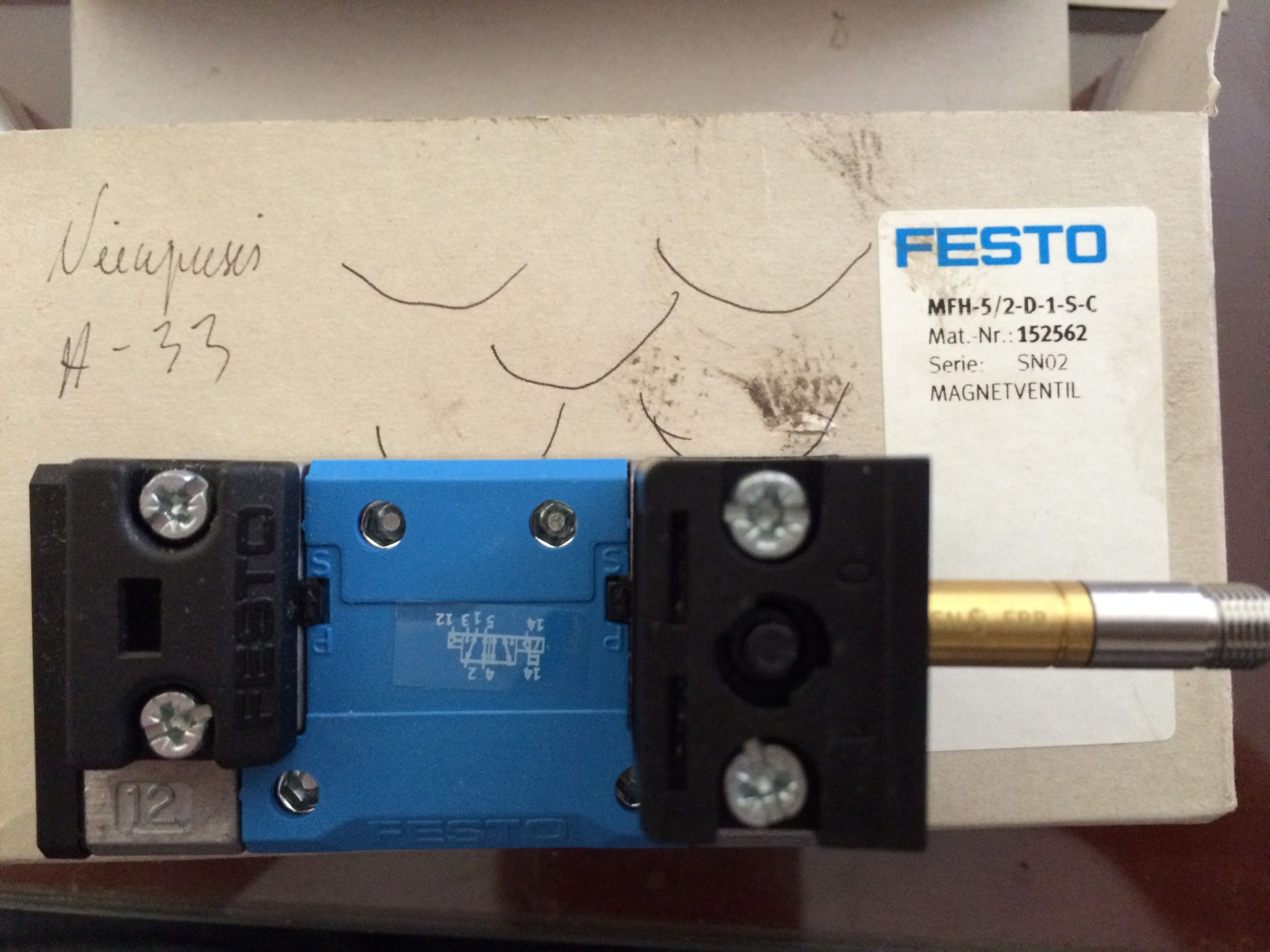

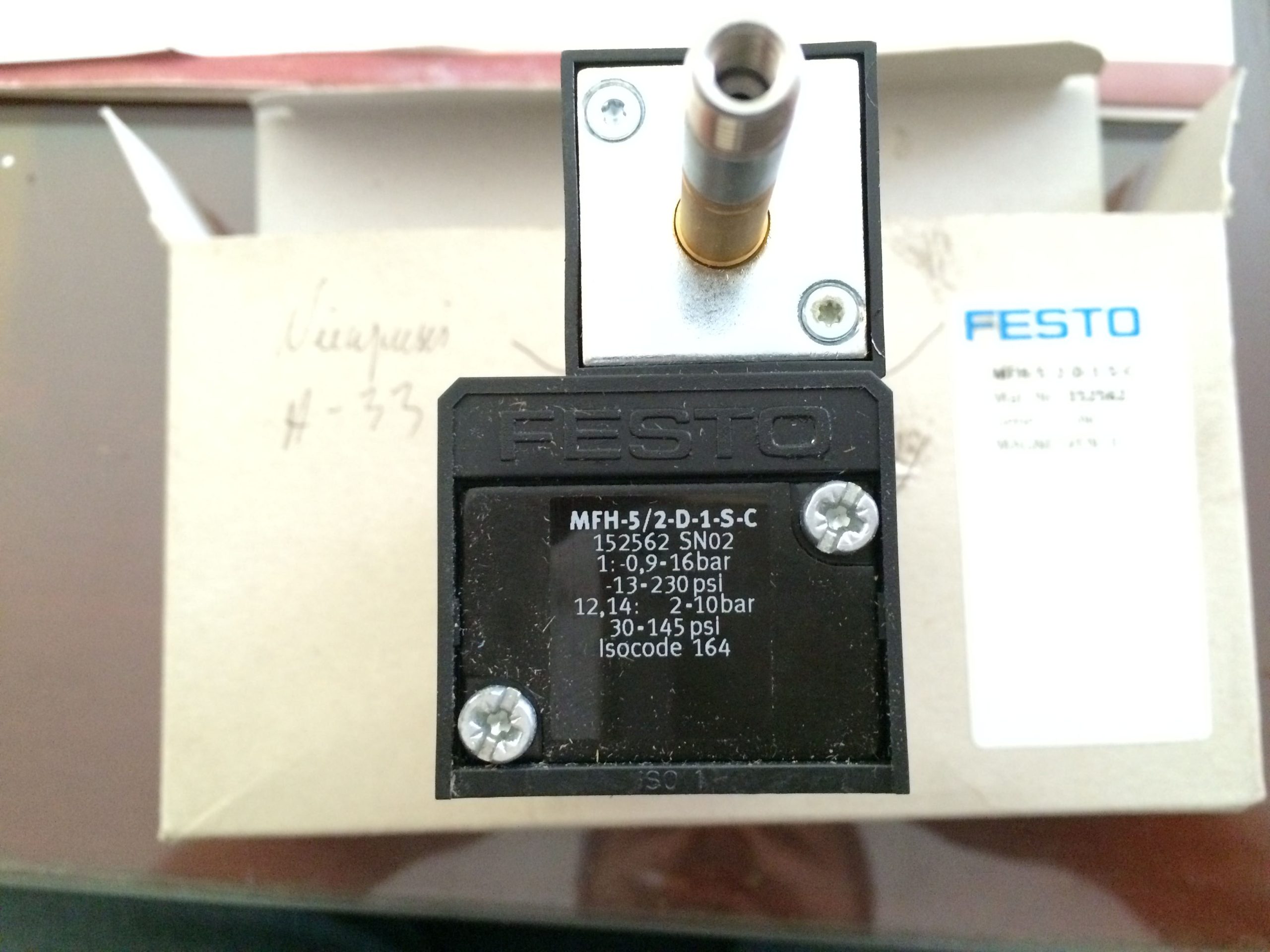

Standards-based valves to ISO 5599-1, solenoid coil MSF

General technical data
Type MFH- … -C, JMF- … -C MFH- … -EX, JMF- … -EX
Design Piston spool Piston spool
Sealing principle Soft Soft
Actuation type Electrical Electrical
Type of control Piloted Piloted
Flow direction With external pilot air supply Reversible Reversible
With internal pilot air supply Not reversible Not reversible
Exhaust air function Can be throttled Can be throttled
Manual override Non-detenting, detenting via accessory Non-detenting, detenting via accessory
Type of mounting On sub-base, via through-hole
Mounting position Any Any
Nominal width [mm] 8 8
Overlap Positive overlap Positive overlap
Width [mm] 42 42
Grid dimension [mm] 43 43
Pneumatic connections Sub-base size 1 to ISO 5599-1 Sub-base size 1 to ISO 5599-1
Noise level [dB (A)] 85 85
Conforms to standard ISO 5599-1 ISO 5599-1
Maritime classification1) See certificate –
