GUIDED COMPACT CYL.SERIES 4 BALL BUSHINGS Ø50 ST:50MM

55,000.00

CC3005050050
GUIDED COMPACT CYL.SERIES 4 BALL BUSHINGS  Bore:50   ST:50mm MAKE: AIRWORK S.R.L, ITALY

  • Compact Guided Cylinders With CushionHigh precision guide bushings with high resistance to wear
    Rectified front plate to guarantee the maximum planarity
    Machined body from aluminium profile, with sand blasting and anodization treatment to harden surfaces
    High resistance polyurethane seals
    PTFE based grease with high performances for sealing’s longer lifetime
     Available in ATEX version





1 in stock

Description

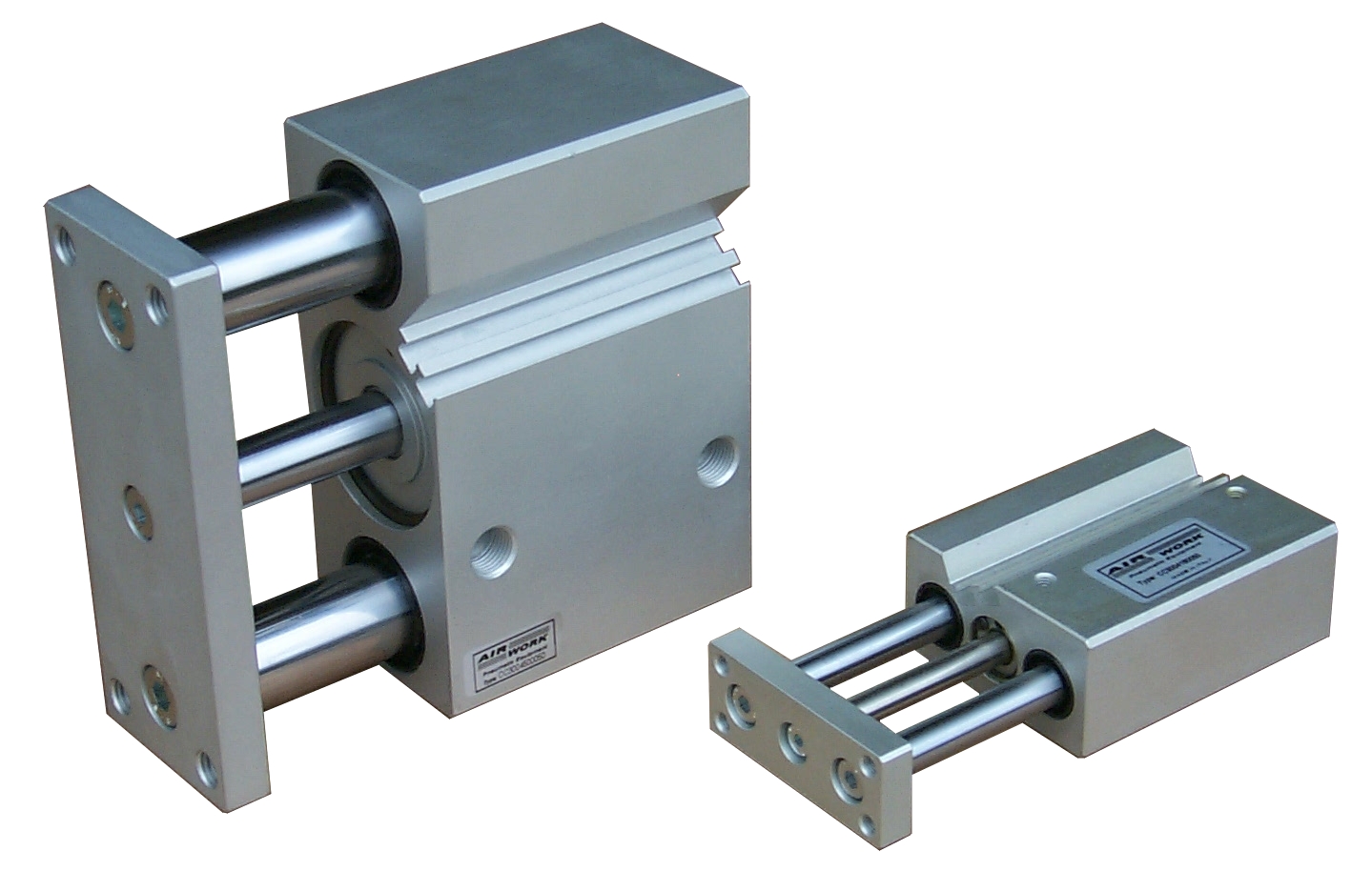

Airwork’s guided compact cylinder CC series family grows thanks to a new version with a self-regulating pneumatic cushioning.

It’s a simple system that offers many advantages:

– It’s a low-cost cushioning system

– The end-stroke shock noise is totally removed

– It’s always available because it’s realized with standard components

– Thanks to the pneumatic cushioning it’s possible to increase the speed rather than the standard version
