Description

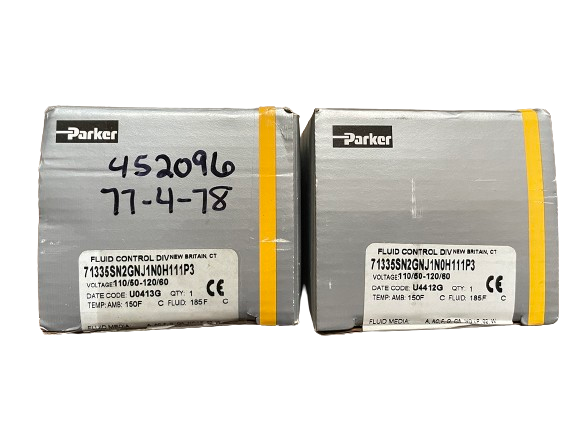

PARKER SERIES 7000 Series Parker PN: 71335SN2GNJ1N0H111P3
VALVE TYPE 3-Way
FUNCTION Multipurpose
PORT SIZE 1/4 inch
VOLTAGE 110/50-120/60
BODY MATERIAL 430F Stainless
SEAL MATERIAL NBR
ORIFICE MAIN (INCH) 1/16
FLOW FACTOR MAIN (CV) 0.095
POWER (WATTS) 10 Watt (AC)
COIL TYPE 1/2″ NPT Conduit, 18″ Leads, Class F, NEMA 7, 9
MAXIMUM PRESSURE DIFFERENTIAL (PSI) 115 psi (AC)
MECHANICAL OPTION Exhaust Adapter Nut
NUMBER OF PORTS 3
ACTUATION Direct Acting
MEDIA General Purpose for Air, Liquids and Gases
PORT TYPE NPT
ORIFICE EXHAUST (INCH) 1/16
FLOW FACTOR EXHAUST (CV) 0.095
ORIFICE 2 SIZE (INCH) n/a
FLOW FACTOR 2 (CV) n/a
MINIMUM PRESSURE DIFFERENTIAL (PSI) 0
MINIMUM FLUID TEMPERATURE (F) 0
MAXIMUM FLUID TEMPERATURE (F) 185
COIL PROTECTION MODE NEMA 7, 9
